Bulldog B3 Li-Po Battery Charger

BULLDOG B3 LI-PO CHARGER

This is the Bulldog Airsoft B3 Li-Po Charger, an easy compact balance charger for 2 and 3-cell Li-Po airsoft battery. It is a fast charger with a wide AC input and an internal 100-240V AC switch power is built-in. The high-precision balance circuit can supply a larger current of up to 1600mA per cell. Double colour LED to display the process of charging (RED: charging; GREEN: full). This charger also has a separated corresponding balance port for each battery pack.

Input voltage: AC 110V-240V
Balance charge current: 3x 1600mA
Display: Green & Red LED
Case: Plastic
Dimension: 90mm*55mm*35mm
Weight: 180g

Charger Cells for LI battery Charge current range
B3 Compact 3x 1600mA 20W

BULLDOG B3 OPERATION

• Please firstly connect the B3 Pro charger to power, while the three power LEDs will turn from red to green, which indicating that the charger works in good order.
• Please connect the battery pack to balance port, while the three power LEDs will all turn into red and charging begins. Please note once the charging of one cell is done, the corresponding power LED for it will turn green.
• When the three power LEDs all turn green, the charging for the battery pack is Finished.

IMPORTANT: This charger is ONLY suitable for Li-Po batteries.

Before purchasing a battery or charger please read our disclaimer here.

IN THE BOX

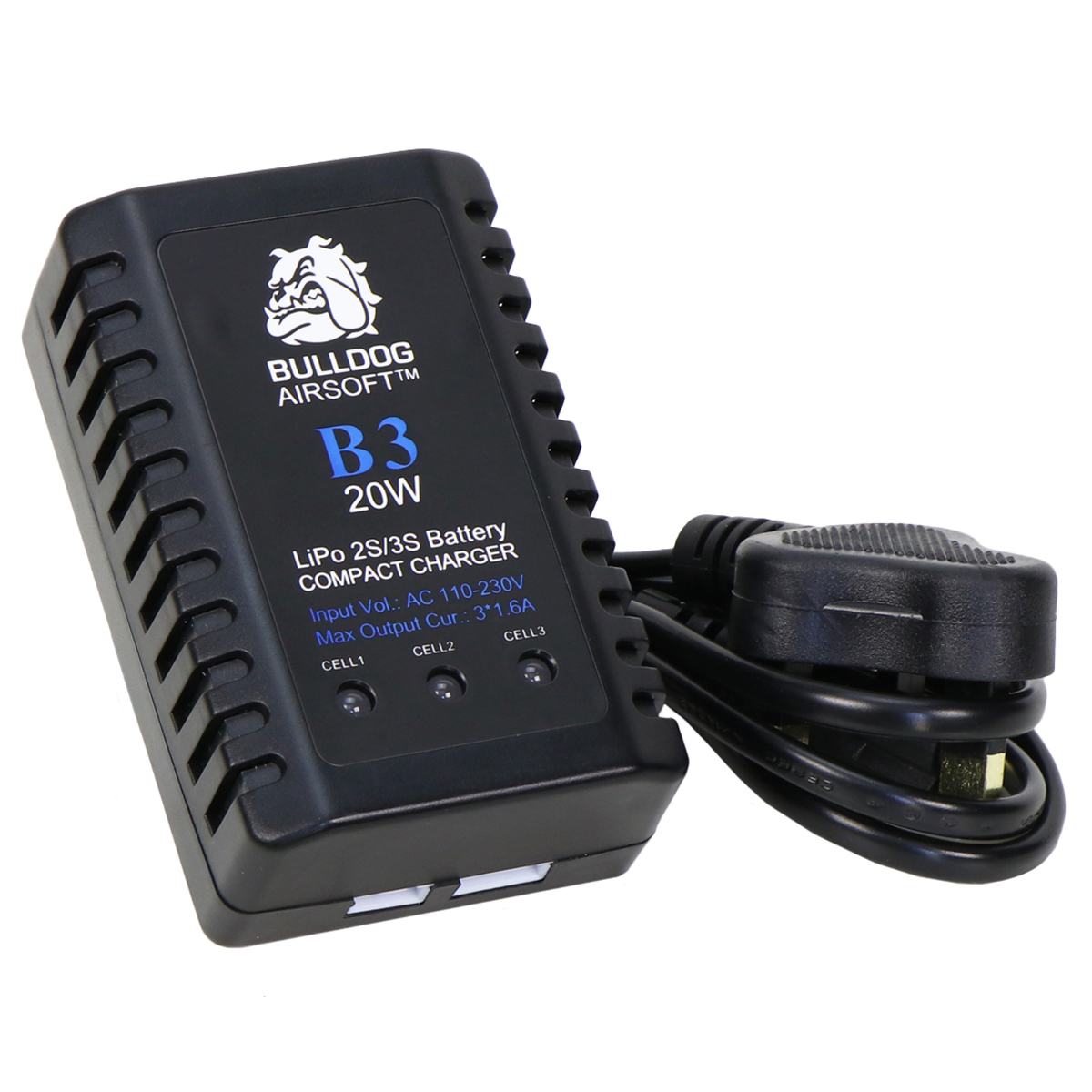

• Bulldog B3 Compact Charger
• Power Cord (3 pin)
• Instruction Manual
